Plastic Bevel Gears

Stagnoli Plastic Bevel Gears

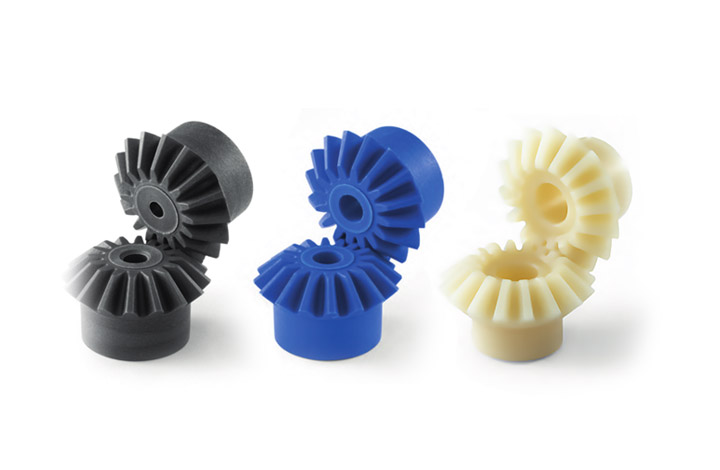

Plastic bevel gears offer a lightweight, low-noise alternative to steel and stainless steel gears, ideal for varied applications without lubrication. Our range includes three specialized types:

PA6 Nylon glass-fiber-reinforced bevel gears for high torque and low-speed applications, with options meeting EU and FDA food safety standards. POM acetal resin bevel gears excel in high-speed, low-torque settings, offering excellent dimensional stability, wear resistance and chemical resistance—also safe for food contact. Polyketone (PK) bevel gears stand out with enhanced impact and chemical resistance, delivering smooth operation at higher temperatures. Each variant is precision-crafted and customizable for a perfect fit in every setup.

Definition:

Plastic Bevel Gears: features & benefits

Plastic bevel gears with different ratios between 1:1 and 1:4
Self-lubricating thermoplastic gears
Supplied with a pressure angle of 20°
Module 1 1,5 2 2,5 3 3,5
Manufactured with a high degree of precision
Available from stock and at short notice
High-quality due to frequent inspections

Lightweight

Injection molded

PA6 Nylon

Acetal resin

Polyketone

Large stock


Technical specifications

Ratio1:1 – 1:4
No. of teeth15 – 64
Bore (mm)3 – 20
Total height (mm)13,8 – 42
MaterialPolyamide-based technopolymer (PA6)
Acetal resin (POM-C)
Polyketone (PK)

Variations

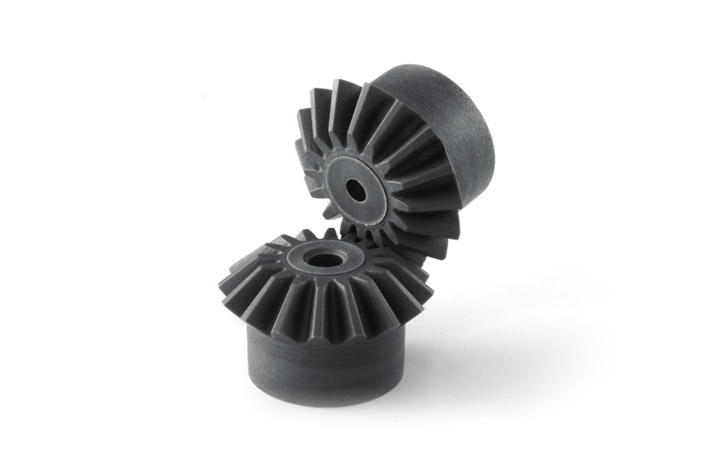

For general useGrey

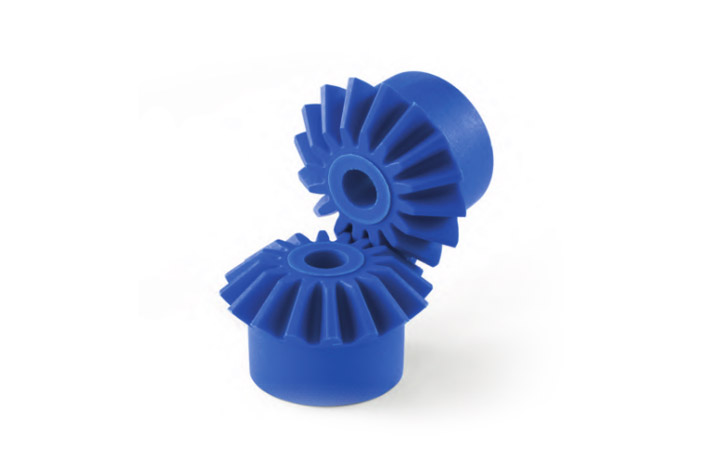

Foodsafe applicationsBlue

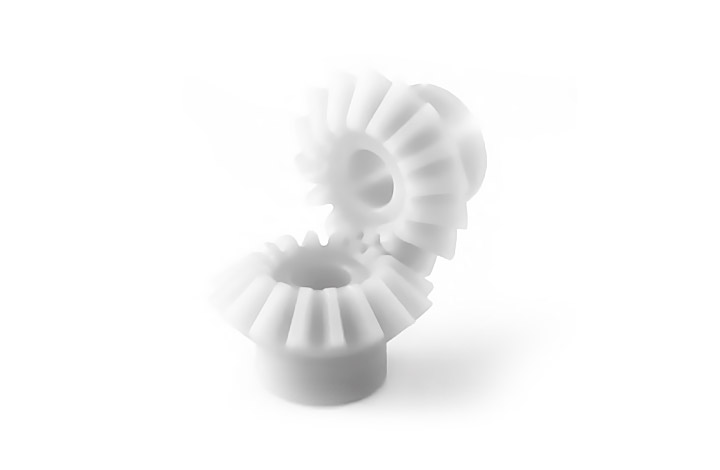

Speed-optimizedWhite

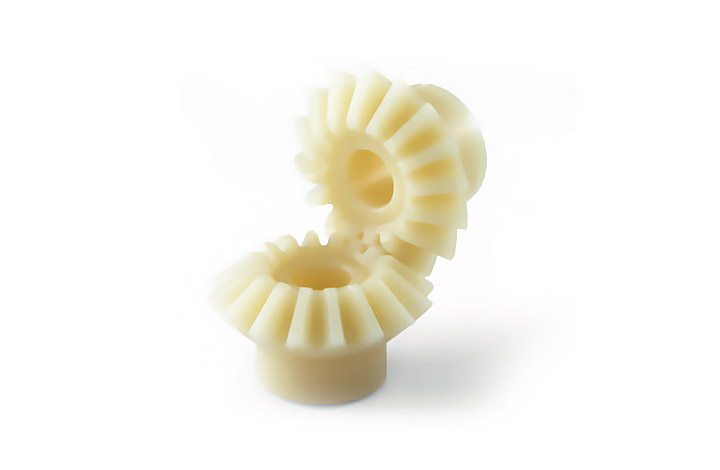

Shock-optimizedYellow

Options

Other bore diameter

Keyway

Mortice

Other number of teeth

Surface treatment

Inquire availability

Price: From
